TD-QC112RF-60-S6B



插销桁架系列
Quick Mount  Series

   TD-QC112RF-60-S6
  为安全起见，使用折叠系列型号 TD-QC112RF-60-S6 桁架时，应附加斜撑加固，这样可以大大地提高折叠桁架的负载能力并能加强桁架结构。

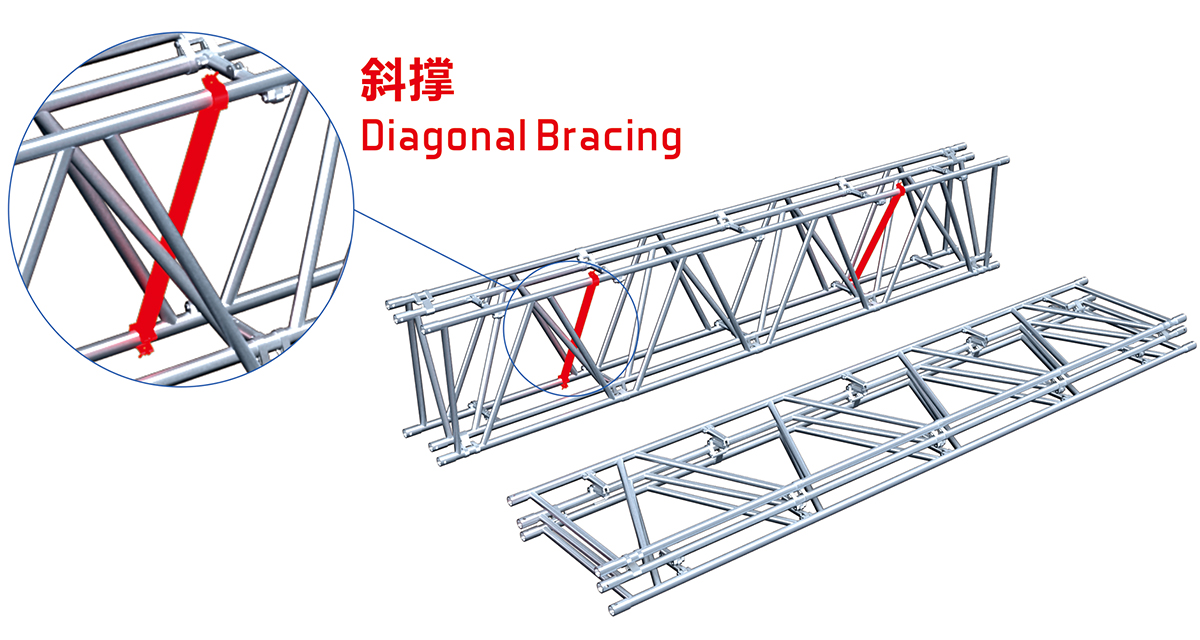

如何使用附加斜撑
当折叠桁架完全打开时，将斜撑的孖叶分别夹在桁架的主管上，如图所示。建议每2米的桁架跨度附加一条斜撑。
For safety consideration, the truss should be backed up with additional diagonal bracing when using foldable series model TD-QC112RF-60-S60 Truss. Compared with folding truss without diagonal bracing, the additional bracing has a greatly enhance the bearing capacity of the truss and strengthen its structure.

How to use the diagonal bracing
When the folding truss completely opened , Clamp the diagonal bracing on the main chord of the truss, as shown in figure. It is recommended that the additional diagonal bracing should be attached in between main chords every 2 meters of truss span.

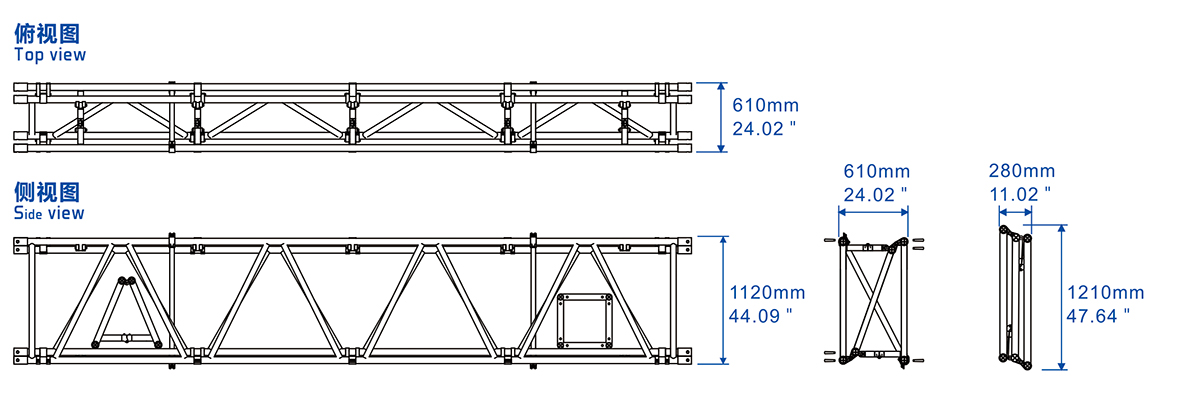

 规格 Dimensions
 形状 Shape  折叠 Folding  折叠 Folding
 材质 Material  EN AW 6082 T6  EN AW 6082 T6
 主管 Main Tubes  60 x 3.5mm Cross Pipe(十字芯)  2.36 x 0.14 in Cross Pipe(十字芯)
 副管 Braces  50 x 3 mm  1.97x 0.12 in
 重量 Weight  ≈ 28.7 kg/m  ≈ 19.32 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg


 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg
